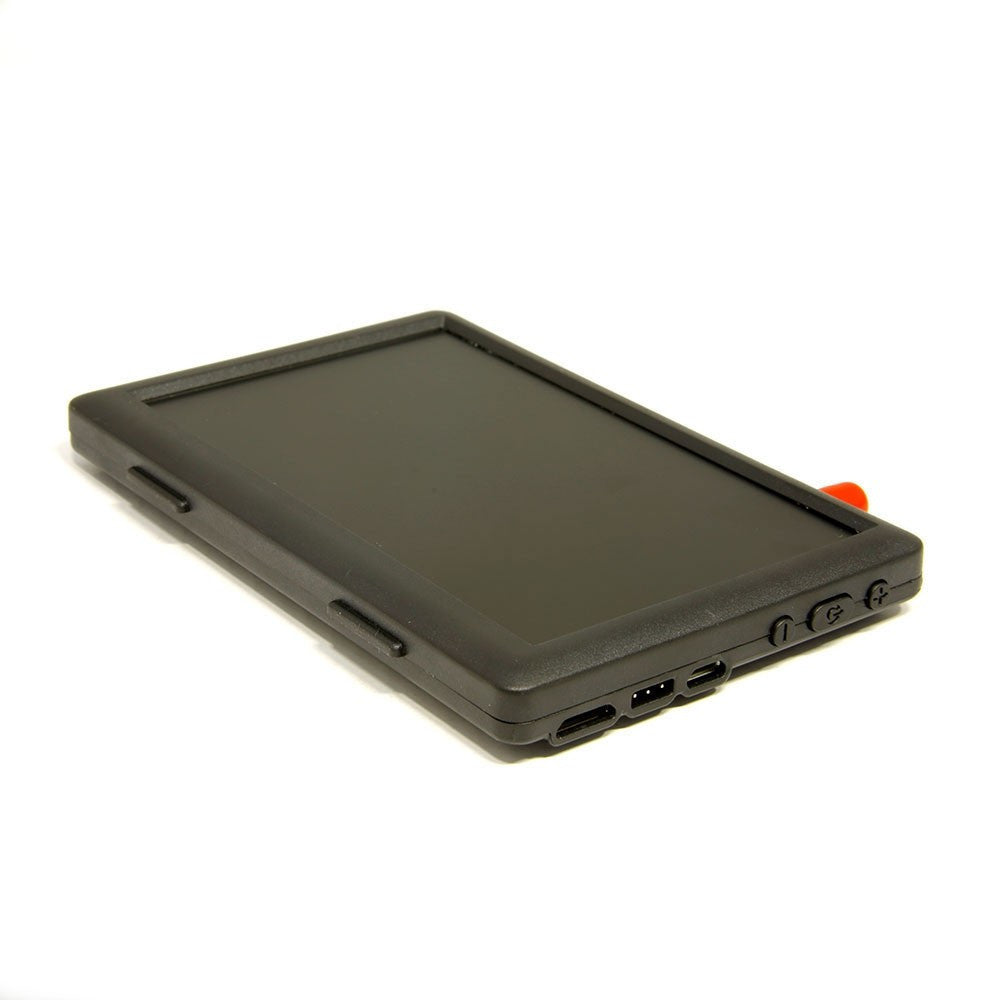

Little Pilot II 5" FPV LCD Monitor

The Little Pilot II LCD is totally unique. It has such a bright screen that it can be used in sunlight without a shade. Extra long 3 hour battery life lets you fly all day without worry.

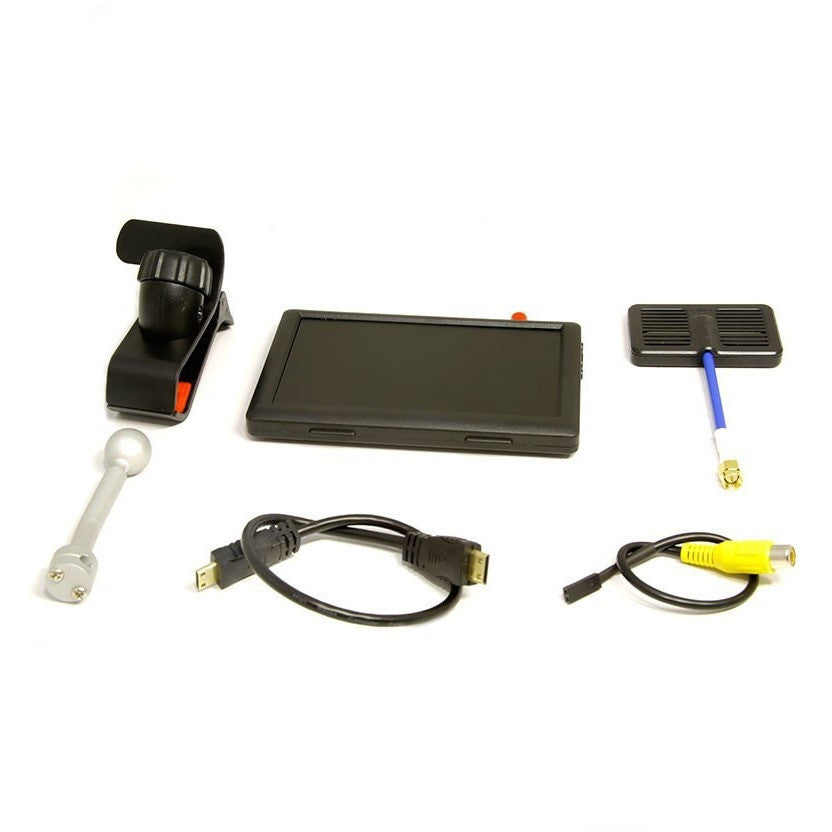

Built-in features include a 5.8 GHz Receiver, HDMI in, special patch antenna with filter and transmitter mount.


Auto channel searching function.

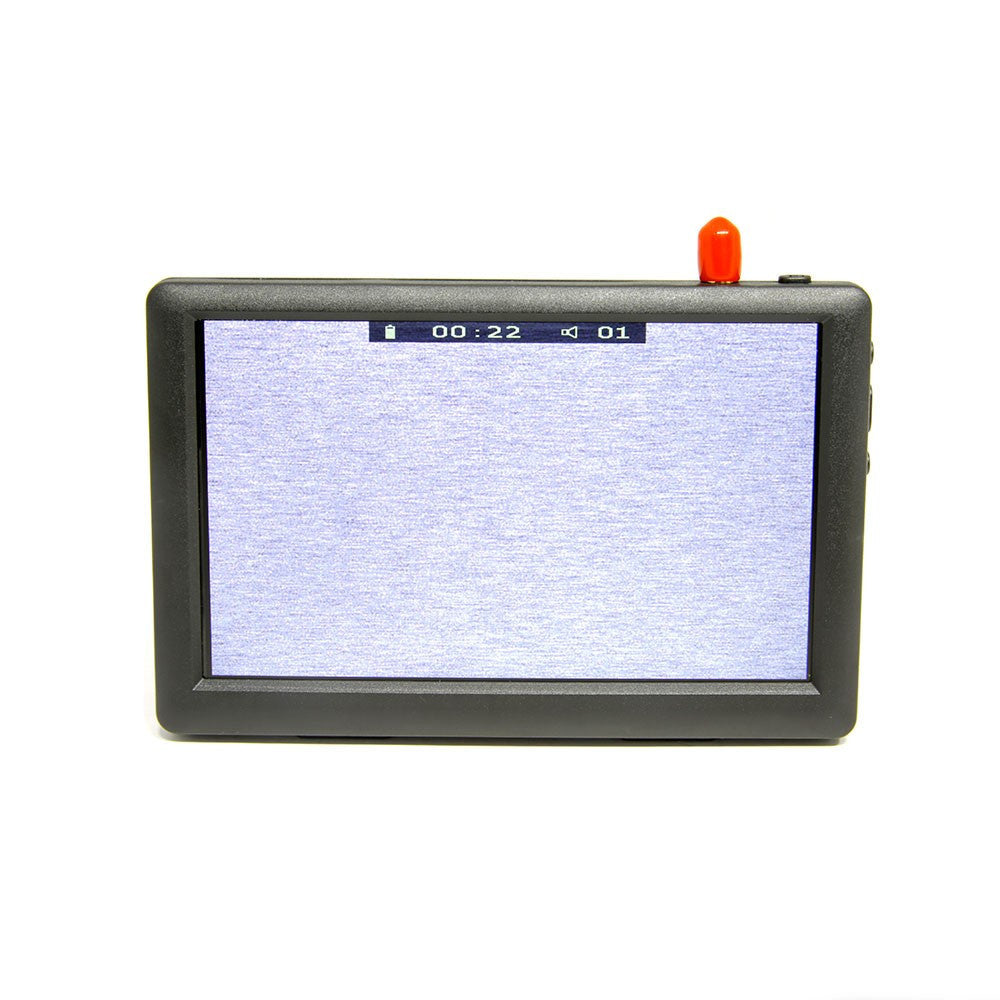

On screen voltage indicator.

On screen operation timer.

On screen signal strength indicator.

Up to 3 hours battery life when fully charged.

Equipped with a mounting bracket, easy to be installed.

Super strong anti-interference design ensures a stable flying experience.

800 * 480 resolution on a 5-inch screen.

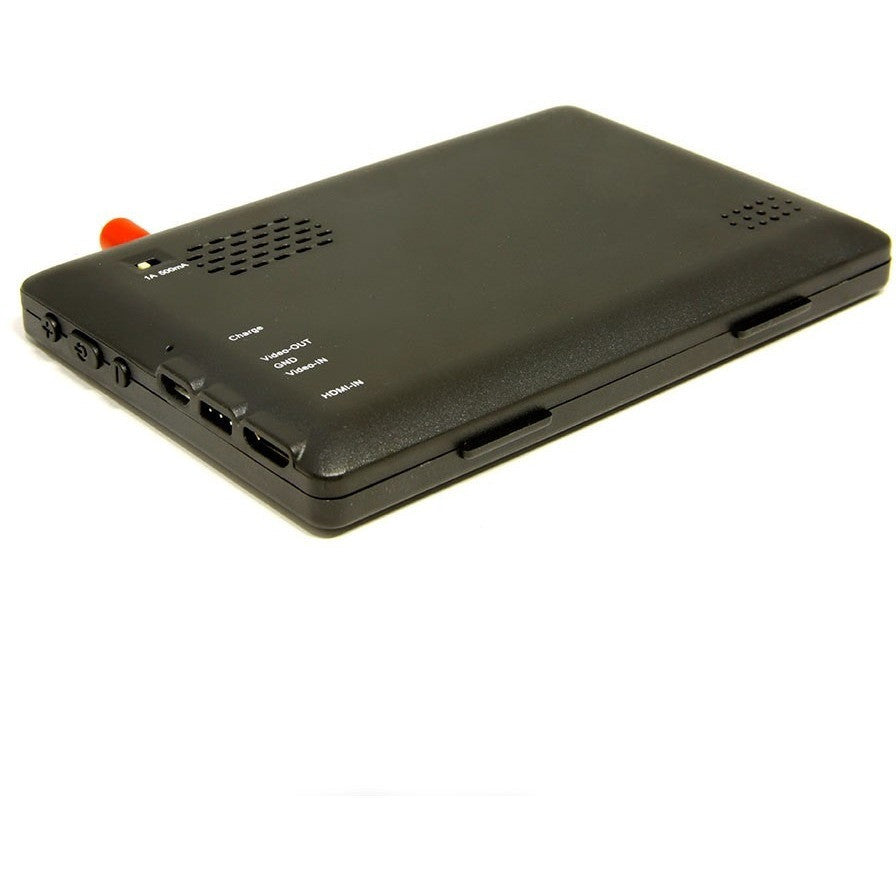

HDMI input

Included 5.8Ghz Patch Antenna with 2.4GHz filter

Included HDMI cable.


Resolution: 800*480
Backlight: LED
Backlight luminance: 700 Lux
Display ratio: 16:9
Response time: 10ms
Format: PAL / NTSC
Operating time: 2.5 - 3 hours
Input: video (PAL / NTSC)
Output: Analog video
Power: Internal battery
Charging: Micro USB port
Antenna connector: RP-SMA Male
5.8G sensitivity: -94db
Size: 128 x 83 x 12mm
Net weight: 215g
