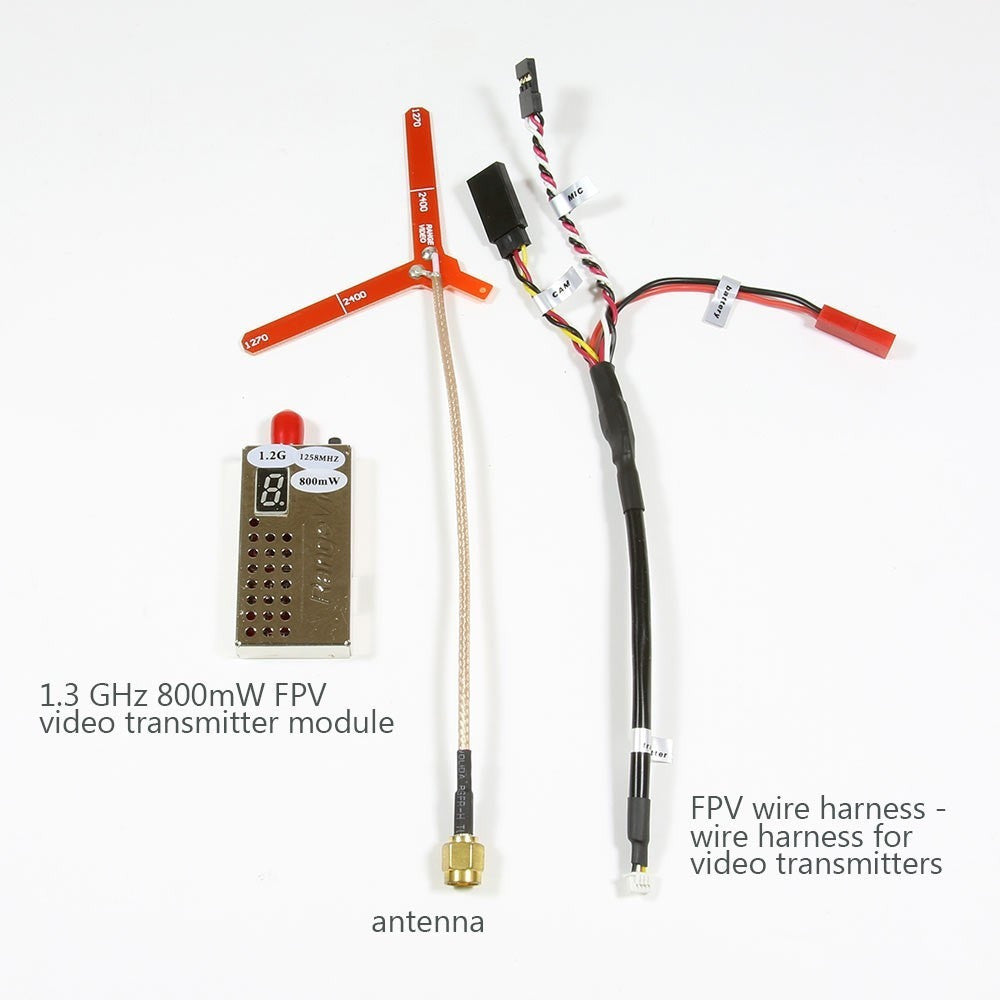

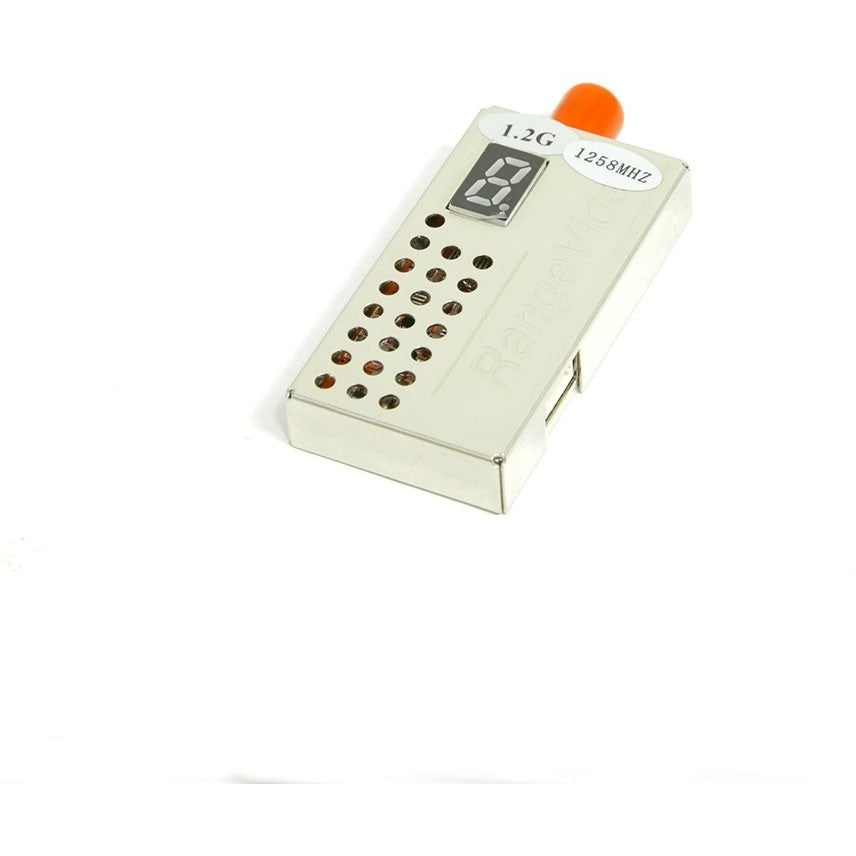

  • 1.2 GHz 800mW video transmitter antenna and harness

    Frequency

    Notify me when this product is available:

    Our most popular long range video transmitter.

    Power

    The recommended power source is a 3s1p Li-Poly battery.

    RF power output based on voltage input to transmitter;
    Tested by T.Scherrer.


    10V 26dBm11V 27dBm 500mW
    12V 28dBm 600mW (nice power level)
    13V 28.7dBm
    14V 29.5dBm (gets darn hot !! so dont do it)

    The transmitter heats up more  at higher voltages.  It is normal for the transmitter to heat up 60 degrees Celsius when being powered from a 12V source. For prolonged life it is recommended to use a heat sink or place the transmitter in an airflow. When bench testing the transmitter it's best to use a lower voltage.

    Frequencies:

    We ship two different versions of this transmitter, depending on your shipping address.

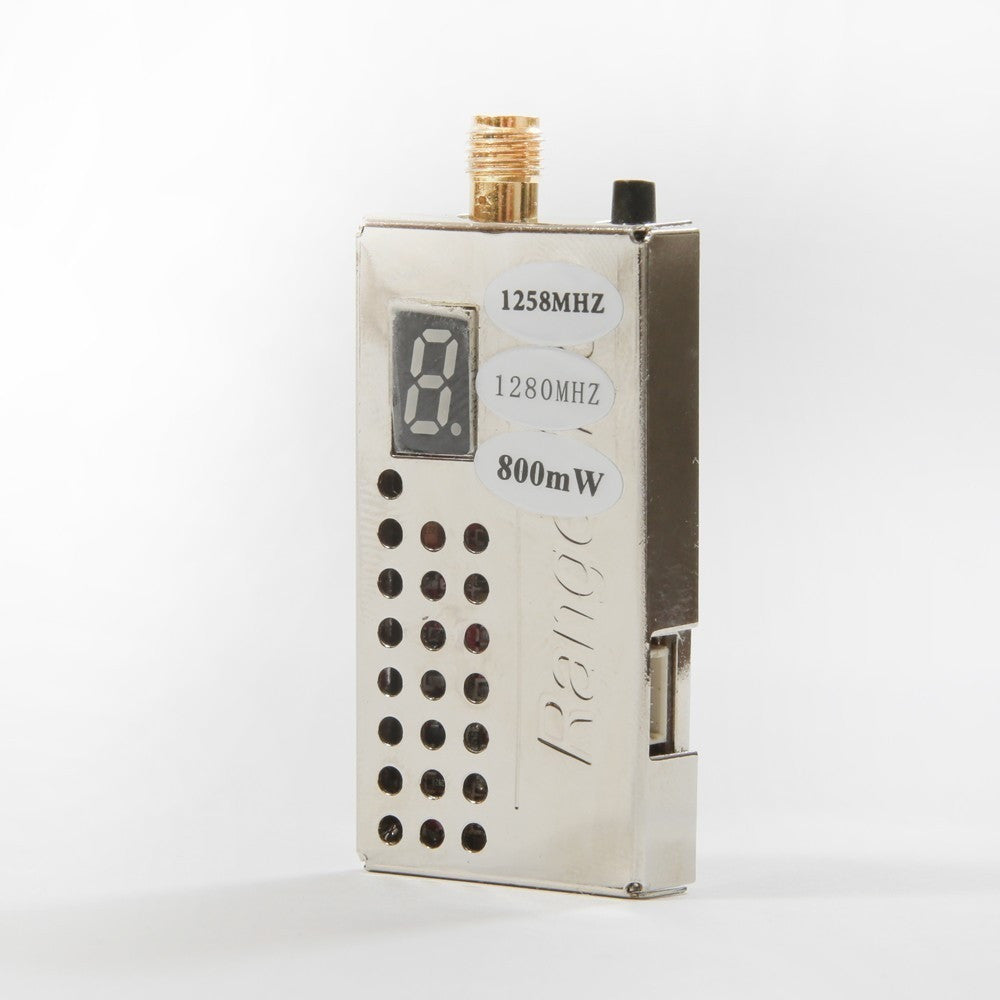

    USA customers can only request a 1 channel version : 1258 MHz or 1280 MHz

    International version will receive 9 channel selectable version:

    International version 1.3GHz 800mW transmitter channels:

    CH4:1080MHZ
    CH5:1120MHZ
    CH6:1160MHZ
    CH7:1200MHZ
    CH8:1240MHZ
    CH9:1280MHZ
    CHH:1320MHZ
    CHC:1360MHZ
    CHd:1258MHZ



    Wiring

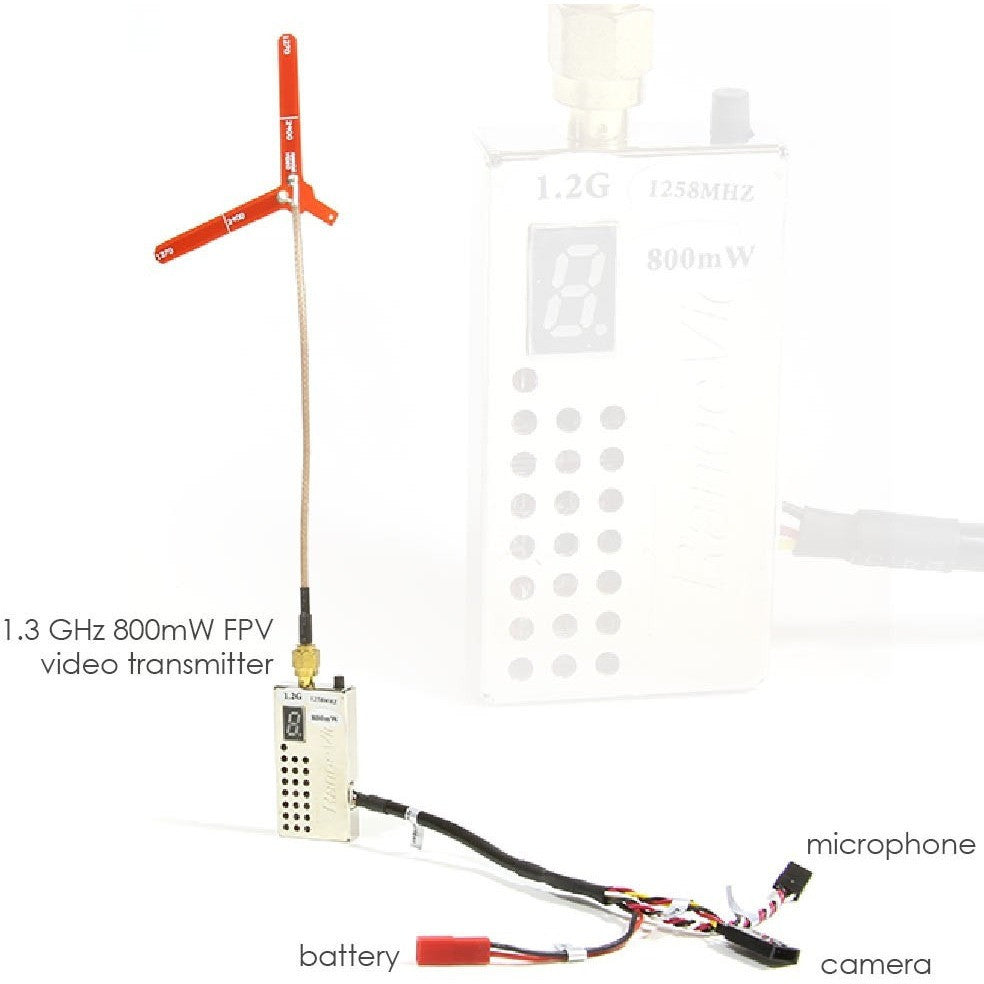

    It is very easy to implement this transmitter into your design. The transmitter has four connections:

    Red: Power
    Black: GND
    Yellow: Video in
    White: Audio in

    You can connect any composite video source to this transmitter. This includes but not limited to:
    Digital camera video out
    Video camera video out
    Micro camera video out

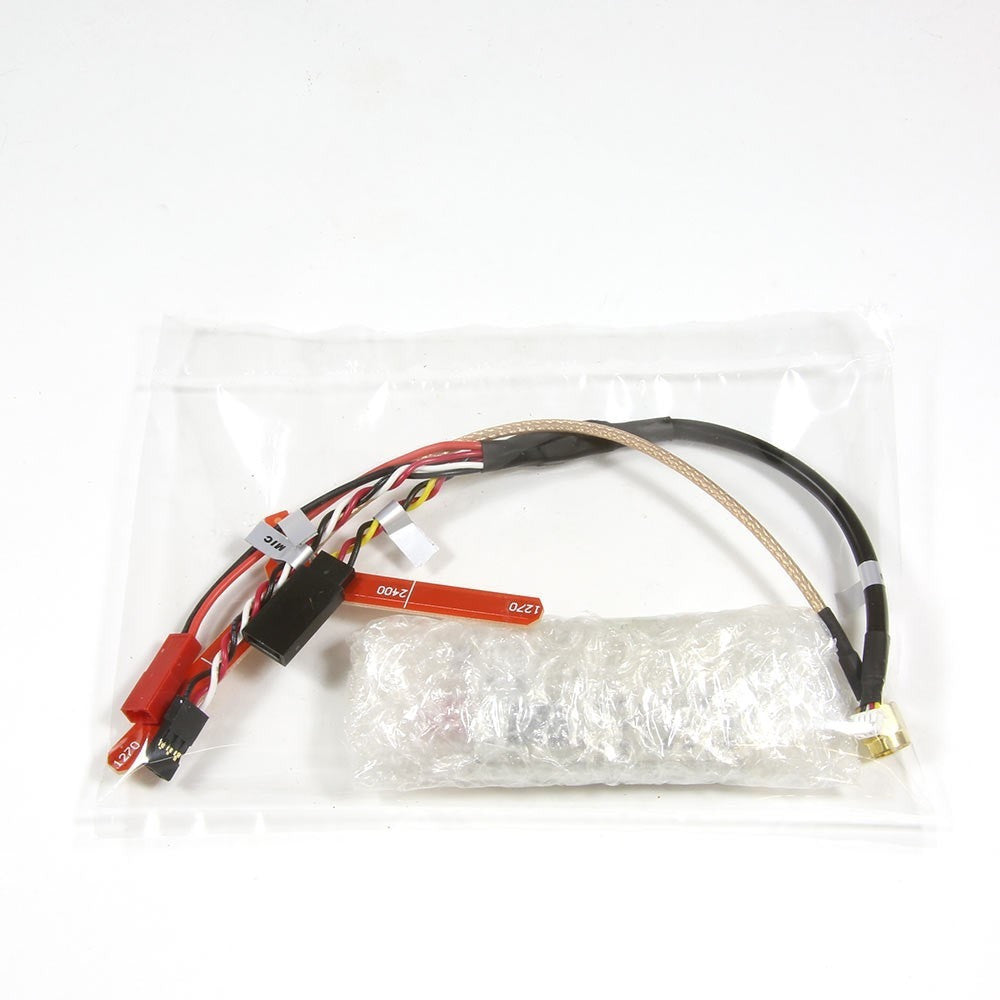

    The included FPV wire harness makes it easy to connect the following devices:
    Gopro camera- use with RangeVideo GoPro Connector to get composite video out.
    KX6 micro camera - the video out cable is included with the camera and plugs right into the FPV wire harness
    RunCam 2 / Foxeer HD cameras- the composite video output cable is included with the camera and plugs right into the FPV wire harness
