FX758

5.8GHz 200mW 3.3V-5.0V FPV wireless AV transmitter module

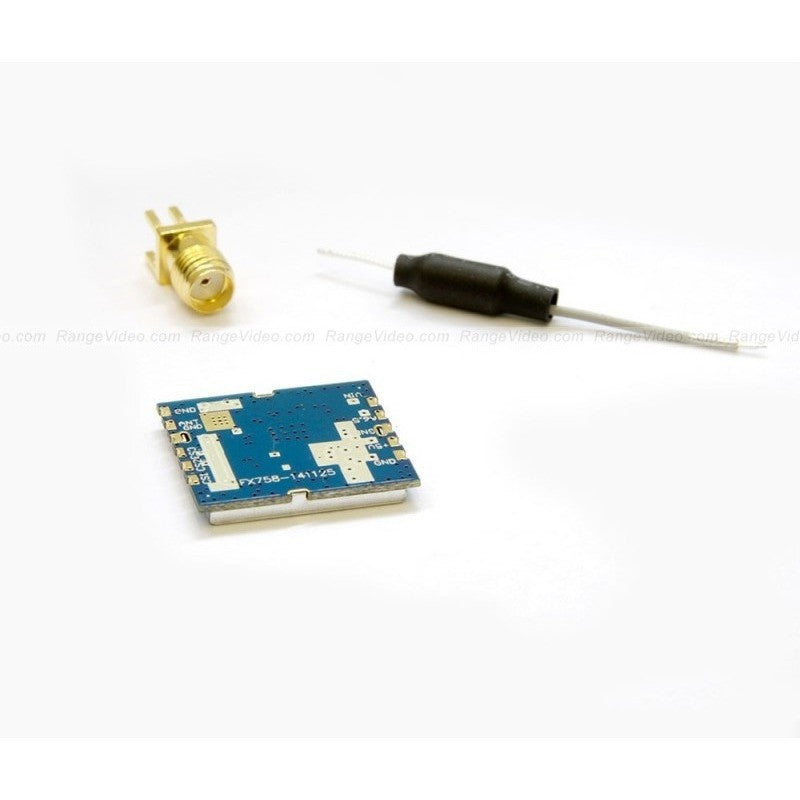

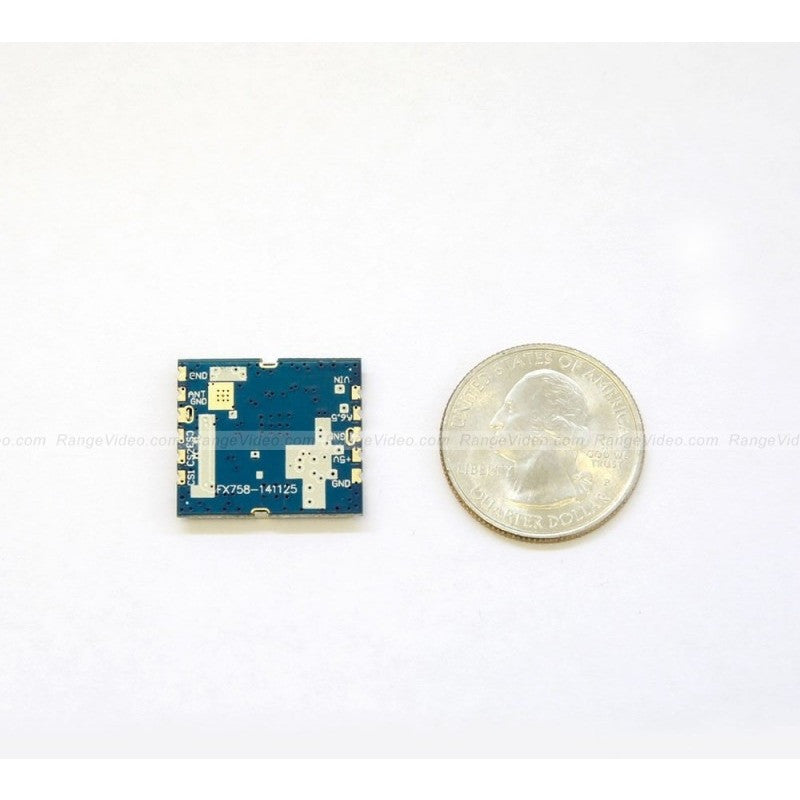

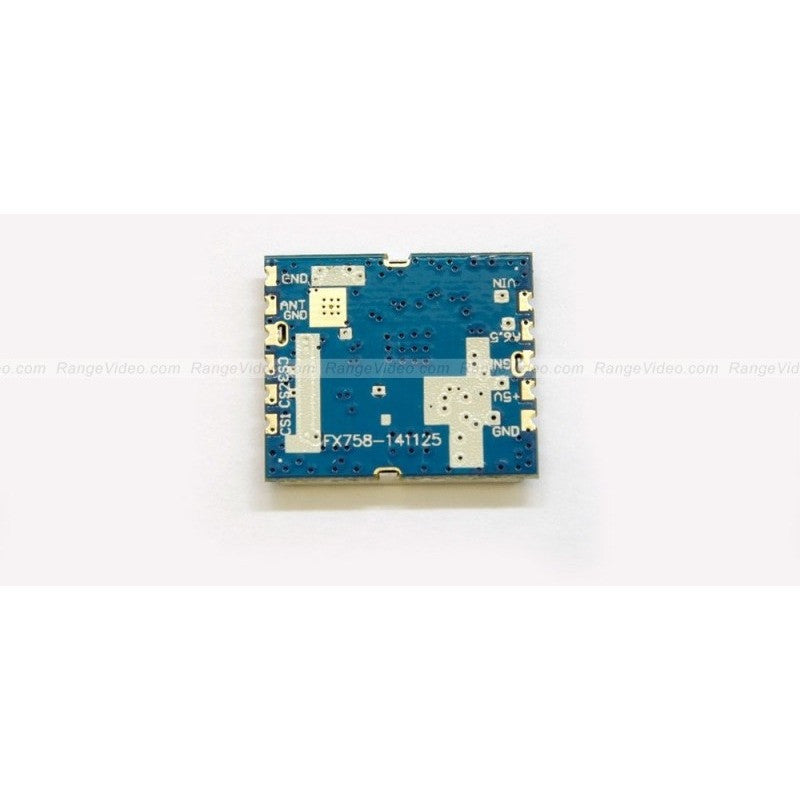

5.8GHz 200mW 5V FPV transmitter module Description: The FX758 is lightweight and known for its reliability and performance. With 400mA of draw at 5v it is an energy efficient and cost effective transmitter to keep your RC light and looking clean! Simply solder the connections straight to the board or install your own pins to allow for easy installation or removal of your transmitter. 5.8GHz 200mW 5V FPV transmitter module Specification: Voltage: 3.3V-5.0V. Can be powered with a 1S Lipo Power: 200mW Frequency: 5725MHz-5945MHz Size:22×19 mm Modulation type: FM Working temperature: -10℃- +60℃ Transmission frequency group: Channels 1 2 3 4 5 6 7 8 FR A 5725 5745 5765 5785 5805 5825 5845 5865 B 5733 5752 5771 5790 5809 5828 5847 5866 C 5645 5665 5685 5705 5885 5905 5925 5945 Package Included: 1 x Transmitter Module FX758-2 1 x Wire mini antenna 1 x SMA edge mount connector Compare FX758 to TX5823 5.8GHz 200mW 5V FPV transmitter module Pictures: [img-5030-left-thickbox_default][img-5031-left-thickbox_default]
