FRSKY

frsky-tfr4-sb

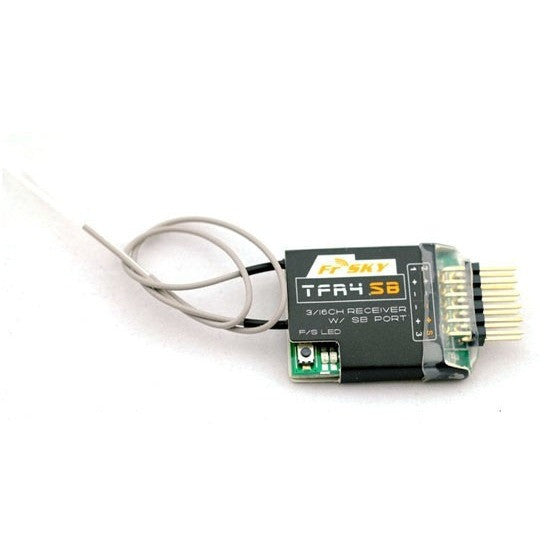

FrSky TFR4 SB 3/16ch 2.4Ghz S.BUS Receiver FASST Compatible

Compatibility:

• FASST 2.4G Air Systems (7CH Mode/Multi Mode): 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, etc..
• FASST 2.4G Surface Systems (C1 Mode): 3PK, 4PK, etc..
• Compatible servos via SB port: Futaba S.BUS servos, FrSky D12MB servo

Features:

• Compatible with FASST 2.4GHz Air Systems (7CH Mode/Multi Mode) & Surface Systems (C1 Mode)
• SB port is compatible with Futaba S.BUS servos and FrSky servo D12MB. No receiver channel limits (except by those on your transmitter) and prevents mismatched servo channel connections.
• Two selectable failsafe setting options (use native failsafe on transmitter or set failsafe on TFR4SB directly.
• High sensitivity and stability.
• Wide operating temperature range, suitable for all kinds of models.

Specs:

Number of Channels: 3~16 (4~16ch in S.BUS mode)
Operating Voltage Range: 3.5V~10V
Operating Temperature Range: -10~80 degree of Celsius
Servo Frame Rate: 14ms (FS-Normal Speed Mode), 7ms (HS-High Speed Mode)
Dimension: 41x24x6mm
Weight: 6g
