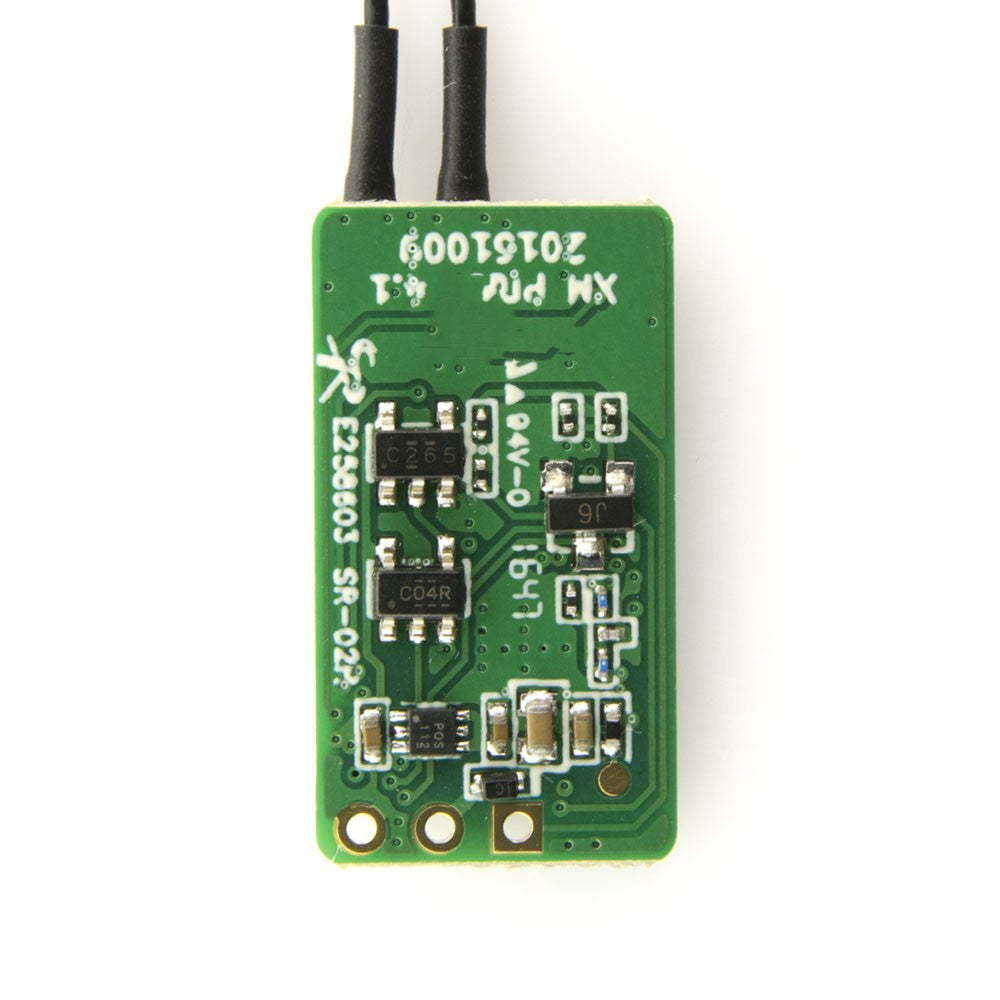

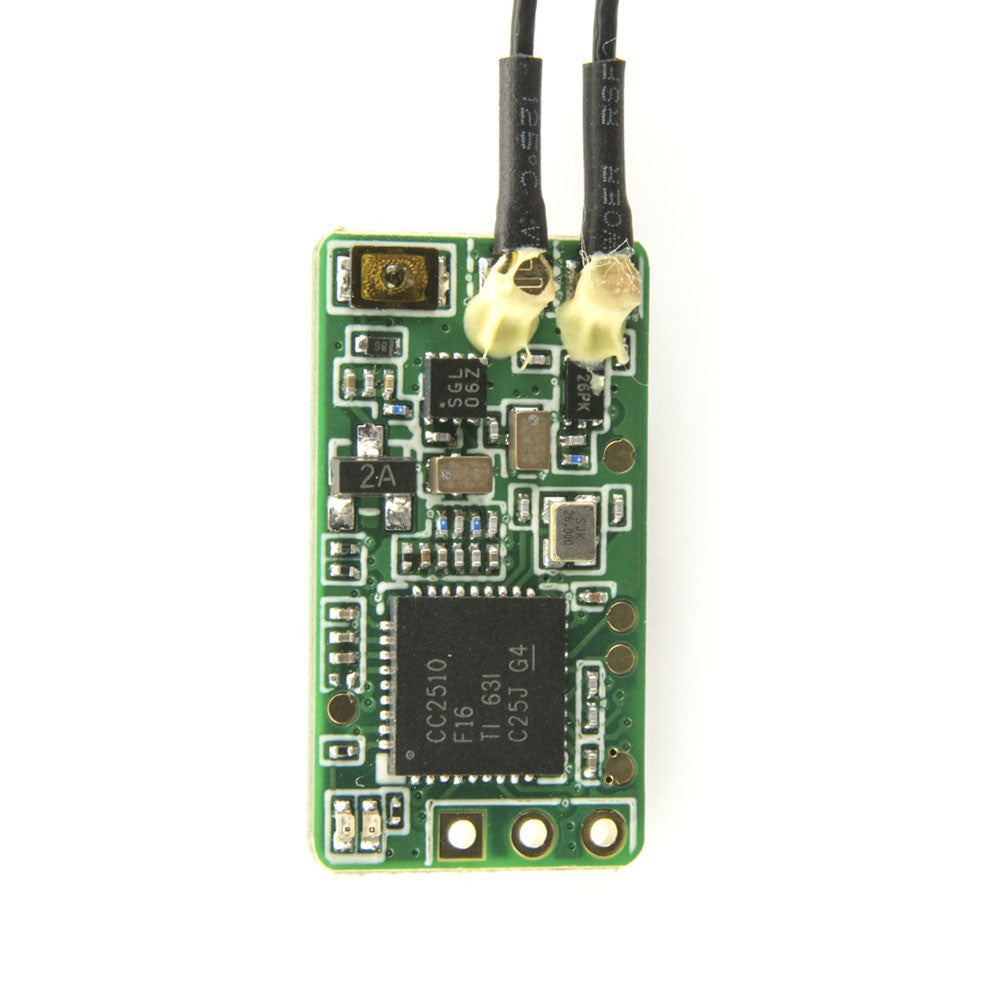

FrSky XM+ Ultra Mini SBUS Receiver, ONLY 1.6g
Specification
-
Dimension: 21.5x12x3.5mm(LxWxH)
-
Weight: 1.6g
-
Number of Channels: Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC)
-
Operating Voltage Range: 3.7~10V
-
Operating Current: 30mA@5V
-
Operating Range: FULL range
-
With RSSI output on board: Analog 0~3.3V
- Firmware Upgradeable
-
Compatibility: FrSky D16 mode
- No Telemetry

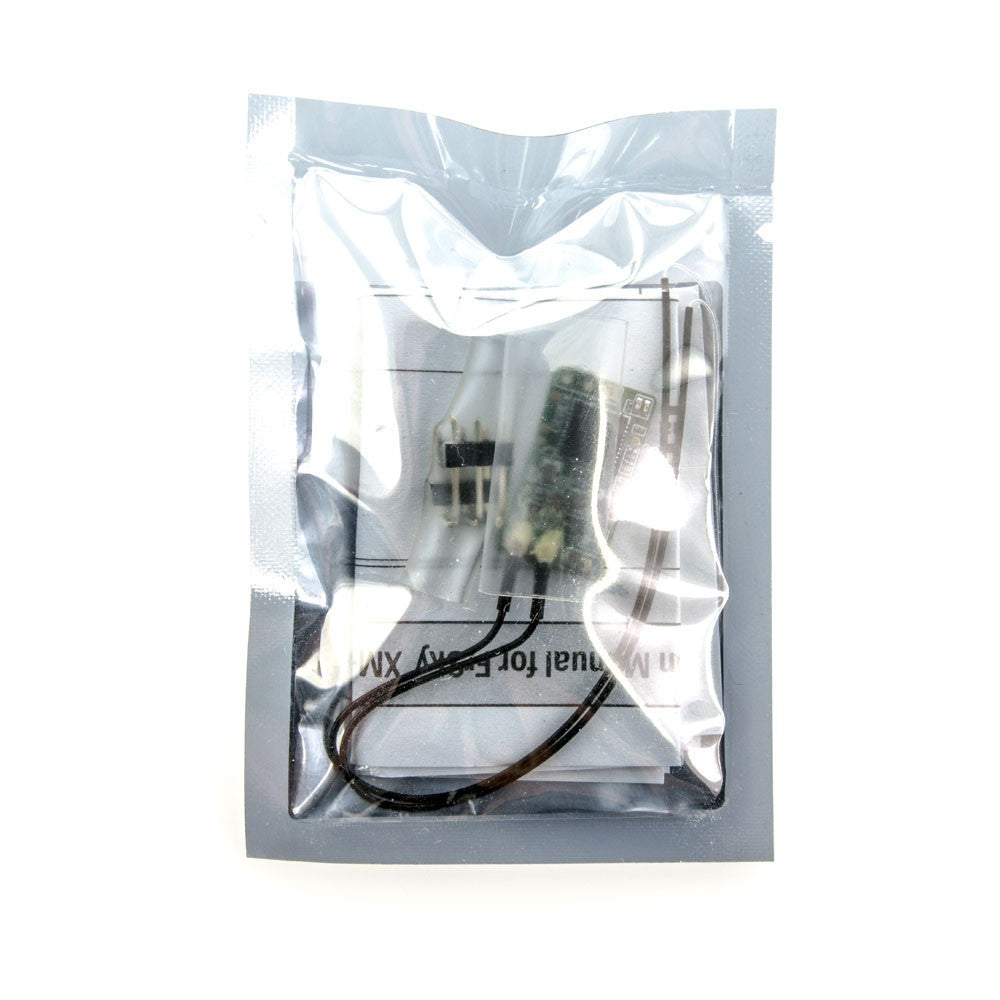

Includes

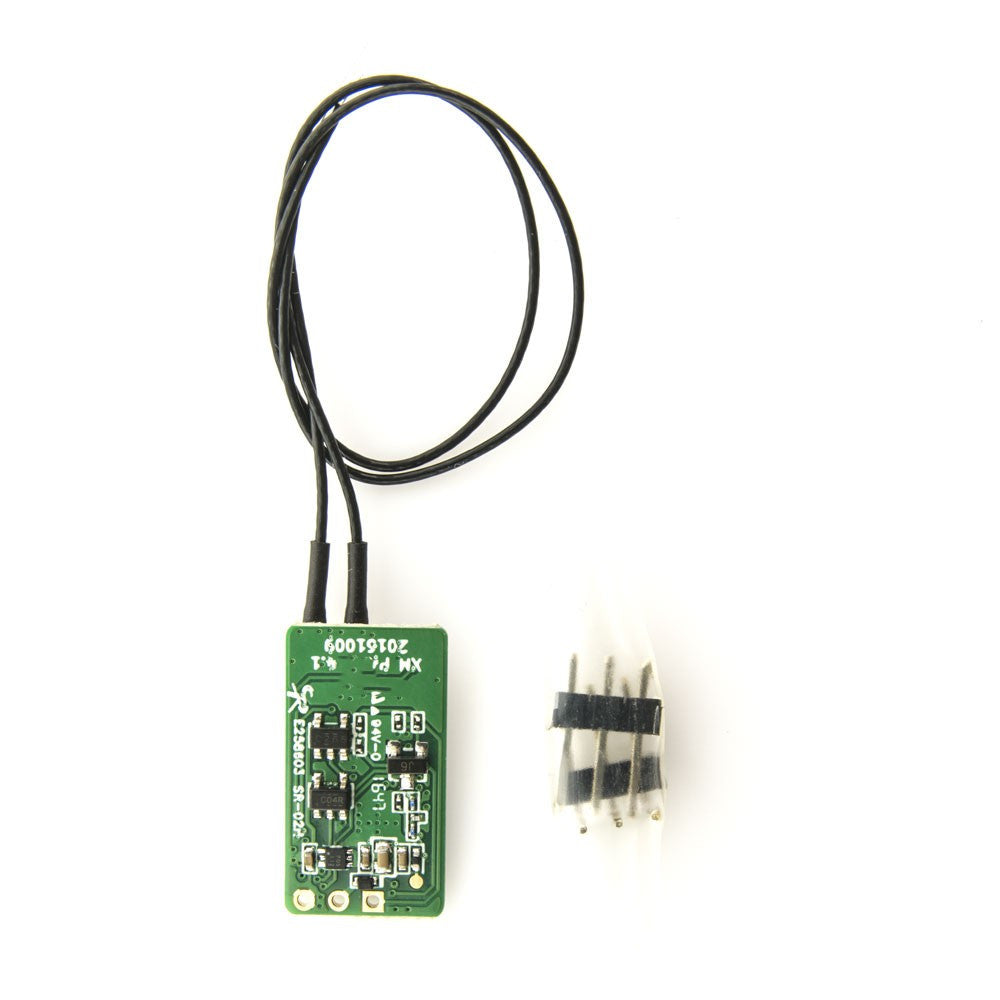

- 1 X FrSky XM+ SBUS Mini Receiver
