VB5-15

Matek Voltage Booster, 3-13V to 5-15V Adjustable

Input voltage: 3 V - Vout (Max.15V)
Adjustable output: 5 V - 15 V
Output current: According to the table & curve. Max.3A
5 A switch allows for input currents up to 5 A
Standby current: <10mA
Integrated reverse-voltage protection, over-current protection, over-temperature shutoff, and under-voltage lockout
Typical efficiency of 80% to 95%

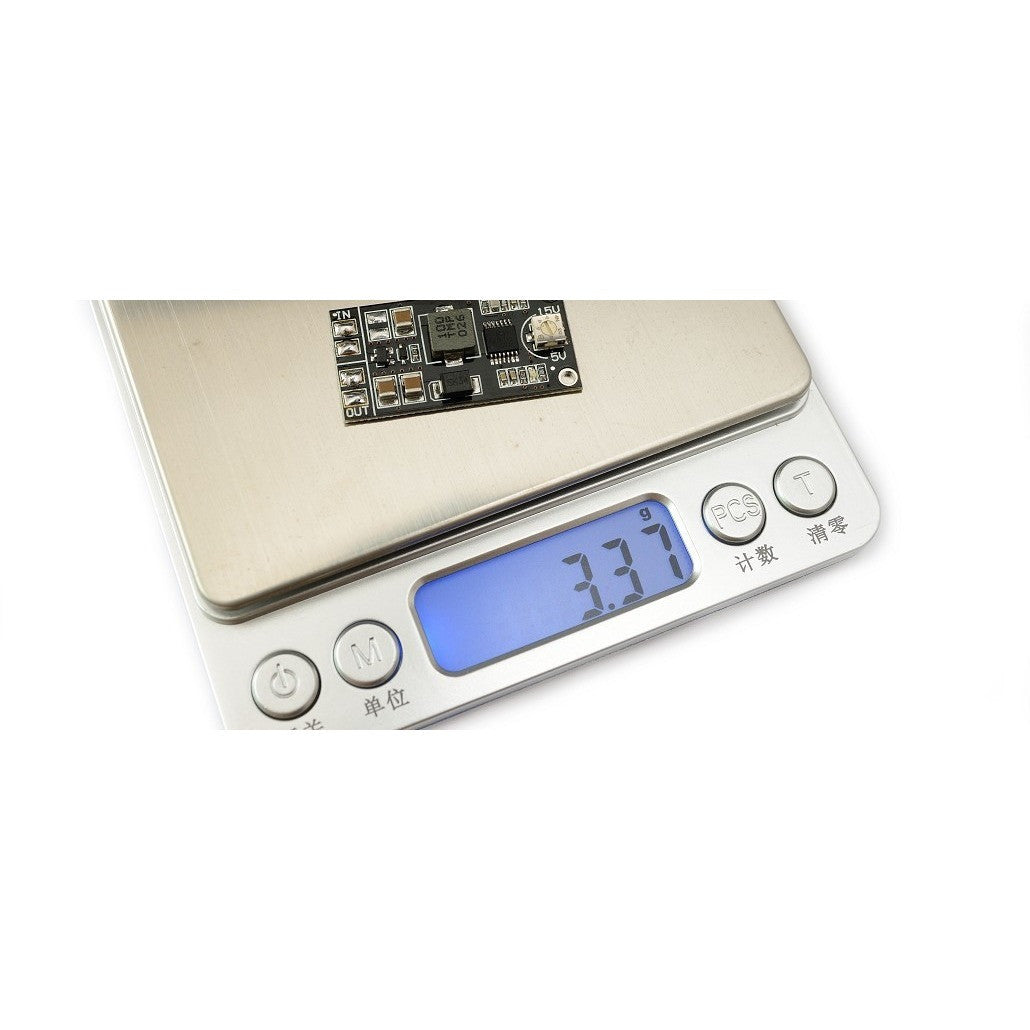

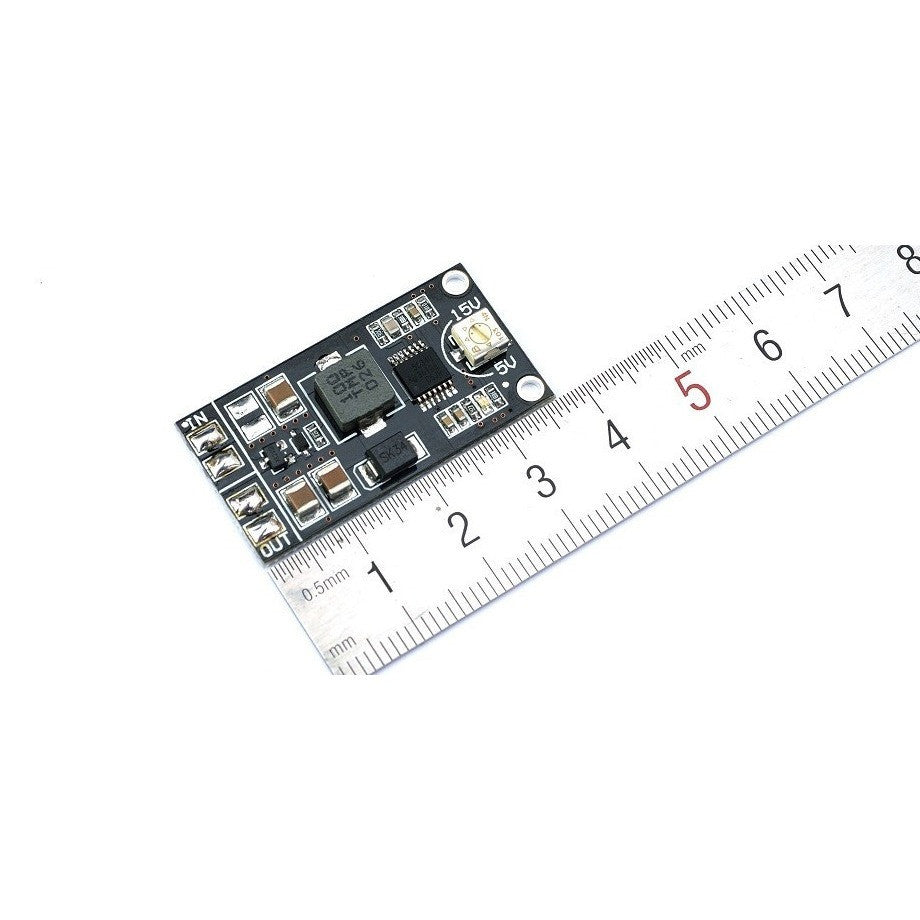

Size & Weight: 37× 19 × 4 mm, 3.5g
Two mounting holes for M2 screws
